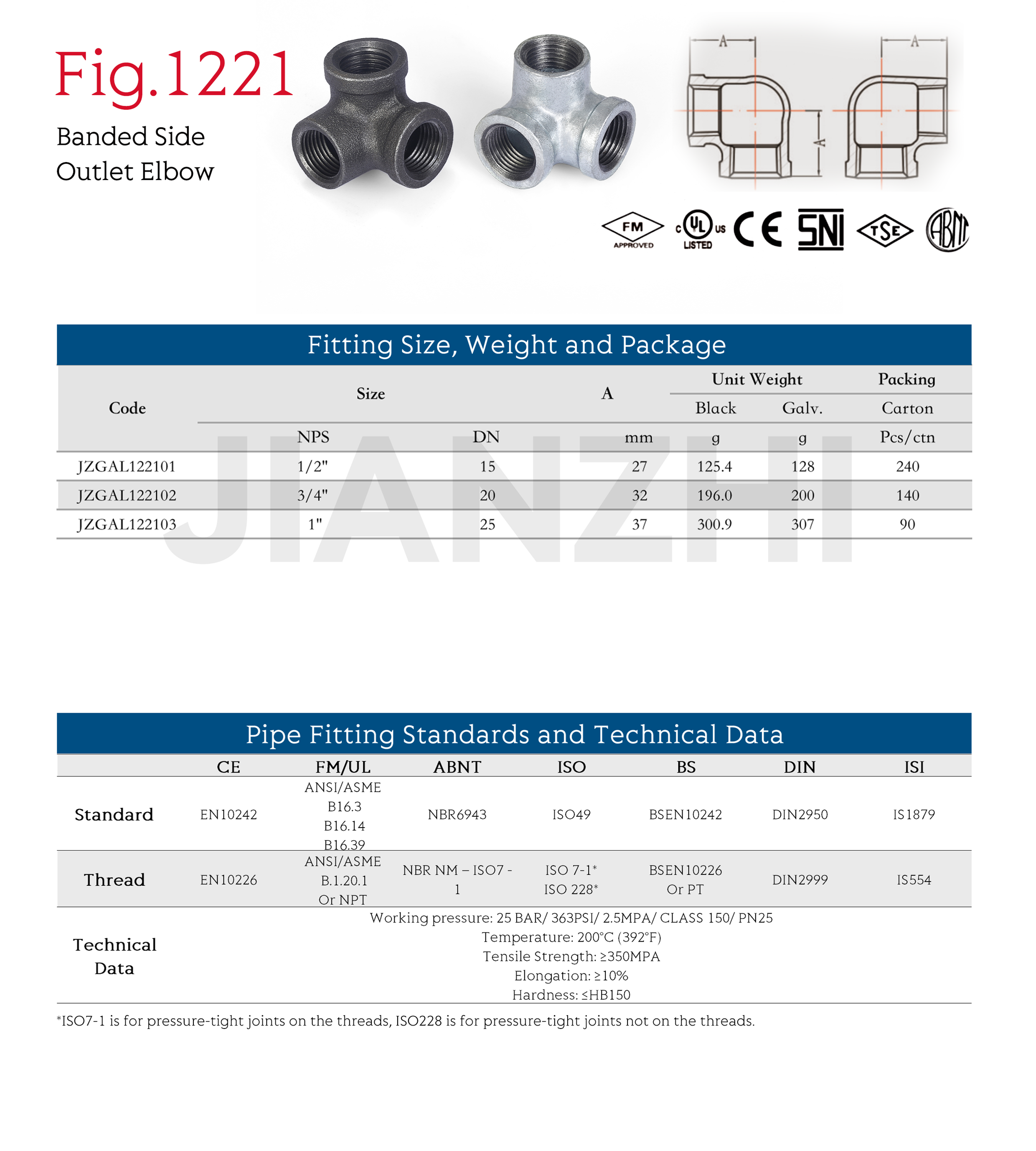

3 Way Pipe Fittings Iron 90 Side Outlet Elbow Fig.1221

3 way galvanized pipe fittings /  3 way black pipe fittings

Product Description

3 way pipe fittings is one type of malleable iron pipe fittings.We supply 3 way galvanised pipe fittings & 3 way black pipe fittings.

Product Overview

  • Constructed of made-to-last malleable iron
  • Not for use with potable water
  • 3-way fitting can be used as a corner piece or other joining piece for an industrial decor project
  • IPS threads for compatibility with other project materials such as lamp parts, valves, etc.
  • Pipe decor line contains an array of fittings and connectors for a variety of projects that can be used with other pipe decor 1/2 in. fittings or other gas fittings
  • Pipe preparation materials not included

Thread Size Range:

   27mm (1/2″)    |   32mm (3/4″)  |  37mm(1″)

Detail:



3 way black pipe fittings-Side Outlet Elbow

Three-way pipe fittings are used to connect three pipes together at a junction. Galvanized three-way pipe fittings are made of galvanized steel and are designed to resist rust and corrosion, making them a popular choice for outdoor applications.

Galvanized three-way pipe fittings come in a range of sizes and shapes to fit different pipe sizes and configurations. They can be threaded or non-threaded, depending on the type of pipe and fitting being used. Threaded fittings have threads on the inside of the fitting that screw onto the outside of the pipe, while non-threaded fittings are designed to be welded or soldered onto the pipe.

When selecting galvanized pipe connectors, it is important to consider the material of the pipes being used, as well as the size and configuration of the pipes. It is also important to ensure that the fittings are rated for the appropriate pressure and temperature of the system in which they will be used.

FAQ:

Q : Can 3 way black pipe fittings be used in natural gas hook ups/runs?
A : Yes, this side outlet elbow can be used in gas, air and LP applications.

Jianzhi  fittings is a quality manufacturer of malleable iron pipe fittings. We provide almost all types of mi fittings, welcome to inquire.

If you need to purchase a 3 way pipe connector, please contact us immediately. We are here to assist you with high-quality fittings that meet your requirements. Don’t hesitate to reach out for more information or to place your order!





JANZHI-Malleable iron pipe fittings

Thread BSPT and NPT
EN10226 /ASMEB1.20.1/IS0228/IS07-1
International Certification
Extraordinary craftsmanship, perfection, and beauty
Free run-out structure
Protect pipe fittings from injury during connection
Free run-out:
Protect pipelines and fittings
black steel tube fittings
No Free run-out :
May cause damage to pipelines and fittings
disrupting their original performance
black steel tube fittings
*For more product performance testing videos,
please contact our staff
Thread quality higher than nationalstandards
Quick installation
70um Zinc layer thickness
Air pressure
0.6MPa

20%

national
standard
0.5MPa
Shaft Angle
±0.3°

40%

national
standard
+0.5°
Tensile strength
363MPa

10%

national
standard
330MPa
Elongation
12%

33%

national
standard
8%
Execution standards
Material:
EN1562 Or 1S0 5922
Design & Dimensions:
EN10242 0rIS0 49
Thread :
BSPT and NPT
logo

100% individuoltesting ofthe product

Thread angle
Shaft angle
Air tightness
Fully automatic detection
Width Detection
Mechanical properties
Device detection
Elongation
Zinc layer thickness
logo

Reduce carbon emissions and
use renewable energy
Focuson sustainable development

Start from 1982

Sam floot space

Tons of production per year

Tons nbentory

Sustainable Development
iso24001
iso9001
iso24001
10 Production process
Profiling – Smelt – Pouring – Anneal – Burnishing – Correct

|

Galvanization – Threading – Detail processing – Grinding
