Pipe fittings are essential components in plumbing and piping systems. They ensure the efficient transport of fluids or gases. Understanding the different types of pipe fittings and their uses is crucial for professionals and clients alike. This article explores the various pipe fittings types, including pipe coupling types, and their applications.
What Are Pipe Fittings?
Pipe fittings are components used to connect, control, or redirect the flow within a piping system. They enable changes in direction, branching, or size adjustments. These fittings are vital for maintaining system integrity and functionality. Common materials include brass, stainless steel, and PVC.

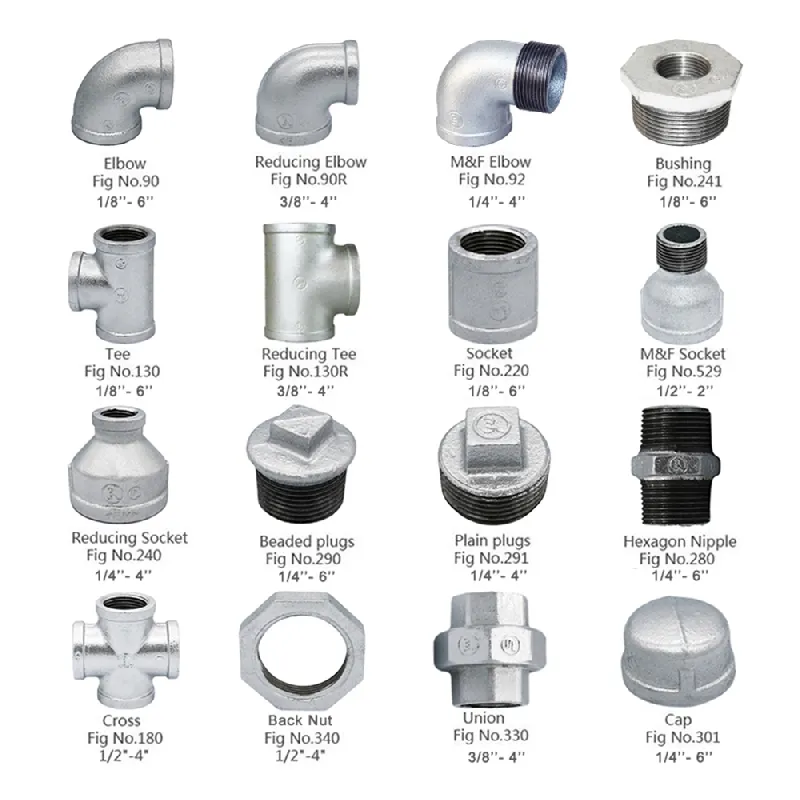

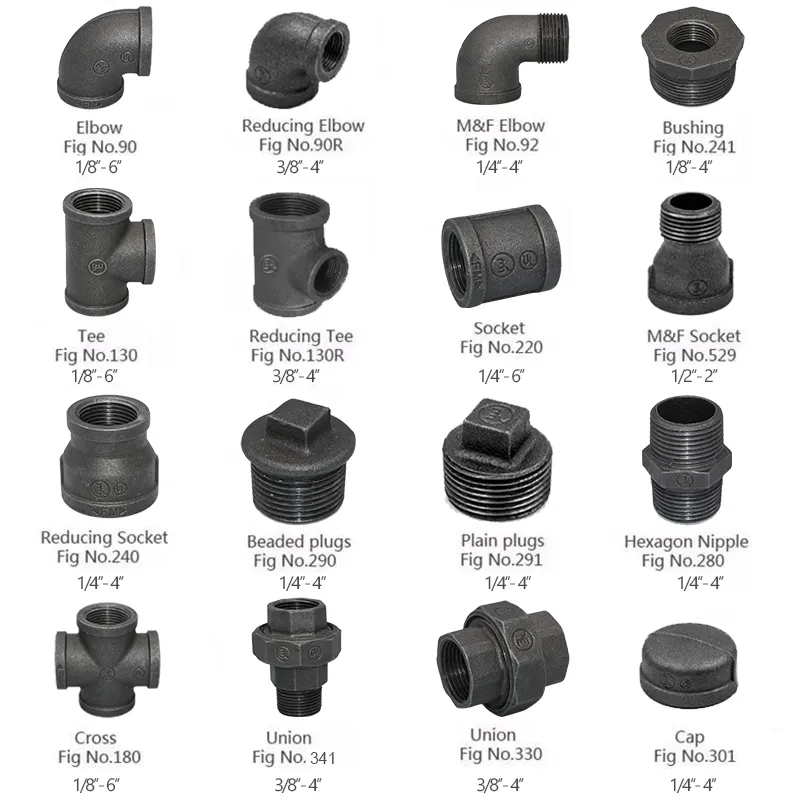

Types of Pipe Fittings
Below is a detailed list of the most common pipe fittings types and their uses:
1. Elbow
- Purpose: Changes the direction of flow, typically at 45° or 90° angles.
- Applications: Used in plumbing systems to navigate around obstacles.
2. Tee
- Purpose: Splits flow into two directions, forming a “T” shape.
- Applications: Ideal for branching water supply lines.
3. Cross
- Purpose: Allows flow in three directions, forming an “X” shape.
- Applications: Used in complex piping systems requiring multiple branches.
4. Reducer
- Purpose: Connects pipes of different diameters.
- Applications: Useful in systems where pipe size changes are necessary.
5. Union
- Purpose: Joins two pipes and allows easy disconnection.
- Applications: Perfect for maintenance-heavy systems.
6. Coupling
- Purpose: Connects two pipes of the same diameter.
- Applications: Commonly used in long piping runs.
7. Adapter
- Purpose: Connects pipes of different types or sizes.
- Applications: Essential for retrofitting or system upgrades.
8. Outlet
- Purpose: Creates a perpendicular branch connection.
- Applications: Used in systems requiring additional flow paths.
9. Cap/Plug
- Purpose: Seals the end of a pipe.
- Applications: Used for testing or future system expansion.
10. Pipe Nipple
- Purpose: A short pipe used for small connections.
- Applications: Common in tight spaces or for mounting fixtures.
11. Bushing
- Purpose: Reduces pipe size within a short length.
- Applications: Used in systems requiring size adaptation.
12. Pipe Flange
- Purpose: Provides a secure, bolted connection.
- Applications: Ideal for high-pressure systems.
Pipe Coupling Types
Pipe coupling types are a subset of pipe fittings types designed specifically for joining pipes. Below are the main types:
1. Full Coupling
- Purpose: Connects two small-bore pipes.
- Applications: Used in systems requiring socket welds or threaded connections.
2. Half Coupling
- Purpose: Branches off from a larger pipe.
- Applications: Ideal for creating secondary flow paths.
3. Reducing Coupling
- Purpose: Joins pipes of different diameters.
- Applications: Used in systems with varying pipe sizes.
4. Compression Coupling
- Purpose: Connects two aligned pipes with a tight seal.
- Applications: Common in systems requiring leak-proof connections.
5. Slip Coupling
- Purpose: Allows pipes to slide for easy adjustment.
- Applications: Used for repairs or in tight spaces.
How Are Pipe Fittings Measured?
Pipe fittings are measured by their nominal size, which refers to the inner diameter. The most common thread type is NPT (National Pipe Thread). Measurements are taken using calipers and thread pitch gauges. Always subtract ¼” from the outer thread measurement for accuracy.
Pipe Fittings vs. Tube Fittings
While pipe fittings types are designed for round, hollow pipes, tube fittings can accommodate square or rectangular shapes. Pipe fittings follow specific schedules for wall thickness, whereas tube fittings are based on exterior diameter and wall thickness.
Understanding the different types of pipe fittings and pipe coupling types is essential for designing and maintaining efficient piping systems. Whether you’re working on a small plumbing project or a large industrial system, choosing the right pipe fittings types ensures optimal performance and longevity. For expert advice and high-quality fittings, consult professionals in the field.
By mastering these concepts, you can confidently explain pipe fittings types to clients and make informed decisions for your projects.
